2009 KYMCO UXV 500
Request a Quote Request a Brochure
Request a Quote Request a Brochure
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

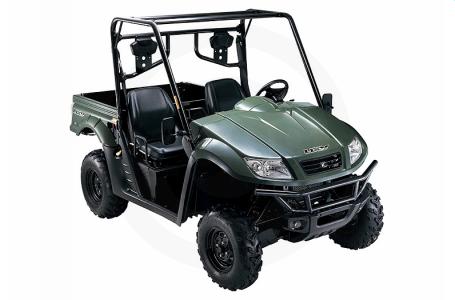

The all new KYMCO UXV 500 4X4 Side X Side is at home as a work horse on the farm, industrial job site or getting you, your buddy and gear to your favorite tree stand. With its class leading suspension, excellent ergonomics and great economical price tag you'll find yourself looking for any excuse to take it for a spin. Available in red, green, silver and supported by a One-Year Limited Factory Warranty.


Features Headlights, Taillights, Trailer Hitch with Tilting Cargo Box, Front Bush Guards, a Digital Dash (Fuel Gauge, Speedometer, Odometer, Trip Meter, High Beam Indicator, Neutral/Reverse Light, Temp Light) and a 1 Year Limited Factory Warranty. C.A.R.B. Certified. Forestry Approved Spark Arrestor

  • 4-Stroke DOHC 498.5cc
  • CVT Automatic Transmission L-H-N-R with Differential Lock
  • 4X4 Shaft Drive High & Low Gear, 2WD/4WD
  • Digital Dash (Fuel Gauge, Speedometer, Odometer, Trip Meter, High Beam Indicator, Neutral/Reverse Light, Temp Light)
  • Soft Panel Driver & Passenger
  • Doors and Front Brush Guard
  • Independent Dual A-Arm Suspension Front & Rear
  • Dual Disc Brakes Rear & Disc Brake Rear, Hand Brake
  • C.A.R.B. Certified with USFS-Approved Spark Arrestor
  • One-Year Limited Factory Warranty
Specifications
  • Engine Type: 4-stroke water-cooled, DOHC
  • Displacement: 498.5cc
  • Horsepower: 33hp
  • Cooling System: Liquid
  • Lubrication: Wet sump
  • Ignition: Electric
  • Gearbox: Automatic CVT L-H-N-R with differential lock
  • Drive System: Shaft with High & Low Gear - 2WD/4WD drive
  • Chassis: Steel
  • Front Suspension: Independent dual A-arm
  • Rear Suspension: Independent dual A-arm
  • Front Tires: 25x8-12"
  • Rear Tires: 25x10-12"
  • Front Brake: Hydraulic dual disc
  • Rear Brake: Hydraulic disc
  • Parking Brake: Hand operated
  • Length: 113 in.
  • Width: 59in.
  • Height: 72.8in.
  • Wheelbase: 75.2 in.
  • Ground Clearance: 12.2 in.
  • Fuel Capacity: 4.42 gals.
  • Weight: 1157 lbs.
  • Available Colors: Red, Green, Silver
Colors
  • Red
  • Green
  • Silver

Specifications

Engine
Engine Type 4-stroke water-cooled, DOHC
Displacement 498.5 cc
Cooling Liquid
Ignition Electric
Chassis
Front Suspension Independent dual A-arm
Front Brakes Hydraulic dual disc
Front Tire 25x8-12 in.
Rear Suspension Independent dual A-arm
Rear Brakes Hydraulic disc
Rear Tire 25x10-12 in.
Dimensions
Dry Weight 1157 lbs.
Fuel Capacity 4.42 gal
Wheelbase 75.2 in.
Ground Clearance 12.2 in.
Transmission
Transmission Automatic CVT L-H-N-R with differential lock
Drive System Shaft with High & Low Gear - 2WD/4WD drive
General
Speedometer Digital
Odometer Digital
Colors Red, Green, Silver
Warranty One-Year Limited Factory Warranty

Compare Models

 Print








Year 2009
Manufacturer Kymco
Model UXV 500
Style Side x Side
MSRP* $7,999.00
Chassis
Front Suspension Independent dual A-arm
Front Brakes Hydraulic dual disc
Front Tire 25x8-12 in.
Rear Suspension Independent dual A-arm
Rear Brakes Hydraulic disc
Rear Tire 25x10-12 in.
Dimensions
Dry Weight 1157 lbs.
Front Travel
Fuel Capacity 4.42 gal
Rear Travel
Wheelbase 75.2 in.
Ground Clearance 12.2 in.
Box Capacity
Rack Capacity
Towing Capacity
Engine
Engine Type 4-stroke water-cooled, DOHC
Displacement 498.5 cc
Bore and Stroke
Cooling Liquid
Compression Ratio
Fuel System
Ignition Electric
General
Speedometer Digital
Tachometer
Odometer Digital
Colors Red, Green, Silver
Warranty One-Year Limited Factory Warranty
Transmission
Transmission Automatic CVT L-H-N-R with differential lock
Drive System Shaft with High & Low Gear - 2WD/4WD drive
