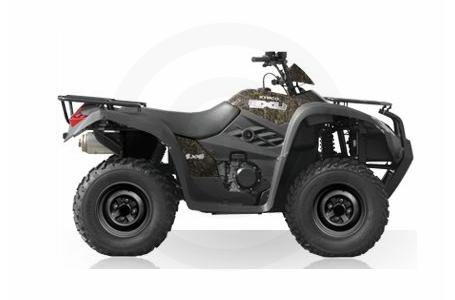

2009 KYMCO MXU 500 Camo
Request a Quote Request a Brochure
Request a Quote Request a Brochure
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

The MXU 500 4X4 is KYMCO's largest and most powerful quad to date. It features a 4-stroke, DOHC 499cc engine with shaft drive, CVT automatic transmission with forward, neutrel, reverse, park, low and high gear. 36 horsepower will get you into and out of any job. Disc brakes, front and rear racks, and a half-ton capacity towing hitch are all standard. Larger 12-inch Kenda Pathfinder tires give this new, bigger KYMCO a substantial 10.2-inch average ground clearance.


Features Headlights, Taillights, Trailer Hitch with Cargo Racks, Front Bush Guards, a Backlit Digital Dash with Speedometer, Tripmeter, Fuel and Temperature Gauges, Neutral, Reverse, High Beam Indicator, Clock and a 1 Year Limited Factory Warranty. C.A.R.B. Certified. Forestry Approved Spark Arrestor

  • Shaft Drive
  • Smooth-Shifting CVT Automatic Transmission
  • Backlit Digital Dash (clock, mph, trip, fuel, odometer)
  • Heavy-Duty Front And Rear Equipment Racks
  • Front Brush Guard, Dual A-Arm Suspension
  • Disc Brakes
  • C.A.R.B. Certified with USFS-Approved Spark Arrestor
  • One-Year Limited Factory Warranty
Specifications
  • Engine Type: 4-stroke water-cooled, DOHC
  • Displacement: 499cc
  • Horsepower: 36hp
  • Cooling System: Liquid
  • Lubrication: Wet sump
  • Ignition: Electric/Pull back up
  • Gearbox: Automatic CVT w/forward, neutral & reverse
  • Drive System: Shaft with 2WD/4WD drive
  • Chassis: Steel
  • Front Suspension: Dual A-arm
  • Rear Suspension: Swing arm
  • Front Tires: 25x8-12"
  • Rear Tires: 25x10-12"
  • Front Brake: Disc
  • Rear Brake: Disc
  • Length: 88 in.
  • Width: 49in.
  • Height: 49.6in.
  • Seat Height: 31.8 in.
  • Wheelbase: 52 in.
  • Ground Clearance: 9.5 in.
  • Fuel Capacity: 4.42 gals.
  • Weight: 634 lbs.
  • Available Colors: Green, Red, Blue, Black and True Timber® Conceal Green™ Camo
Colors
  • True Timber® Conceal Green™ Camo

Specifications

Engine
Engine Type 4-stroke water-cooled, DOHC
Displacement 499 cc
Engine Cooling Liquid
Starting System Electric/Pull back up
Chassis
Front Suspension Dual A-arm
Front Brake Type Disc
Front Tires 25x8-12"
Rear Suspension Swing arm
Rear Brake Type Disc
Rear Tires 25x10-12"
Frame Steel
Dimensions/Capacities
Dry Weight 634 lbs.
Fuel Capacity 4.42 gal
Ground Clearance 9.5 in.
Machine Dimensions (LxWxH) 88 in. x 49 in. x 49.6 in.
Wheelbase 52 in.
Drive Train
Drive Train Shaft with 2WD/4WD drive
Transmission Automatic CVT w/forward, neutral & reverse
General
Speedometer Digital
Odometer Digital
Colors True Timber® Conceal Green™ Camo
Warranty One-Year Limited Factory Warranty

Compare Models

 Print








Year 2009
Manufacturer Kymco
Model MXU 500 Camo
Style Utility
MSRP* $6,499.00
Chassis
Front Suspension Dual A-arm
Front Travel
Front Brake Type Disc
Front Tires 25x8-12"
Rear Suspension Swing arm
Rear Travel
Rear Brake Type Disc
Rear Tires 25x10-12"
Frame Steel
Dimensions/Capacities
Dry Weight 634 lbs.
Front Rack Capacity
Rear Rack Capacity
Towing Capacity
Fuel Capacity 4.42 gal
Ground Clearance 9.5 in.
Machine Dimensions (LxWxH) 88 in. x 49 in. x 49.6 in.
Wheelbase 52 in.
Drive Train
Drive Train Shaft with 2WD/4WD drive
Final Drive
Transmission Automatic CVT w/forward, neutral & reverse
Engine
Engine Type 4-stroke water-cooled, DOHC
Displacement 499 cc
Bore x Stroke
Cylinders
Engine Cooling Liquid
Fuel System
Starting System Electric/Pull back up
Alternator
General
Speedometer Digital
Tachometer
Odometer Digital
Lighting
Colors True Timber® Conceal Green™ Camo
Warranty One-Year Limited Factory Warranty

Current Promotions

There are currently no promotions available for this product.
